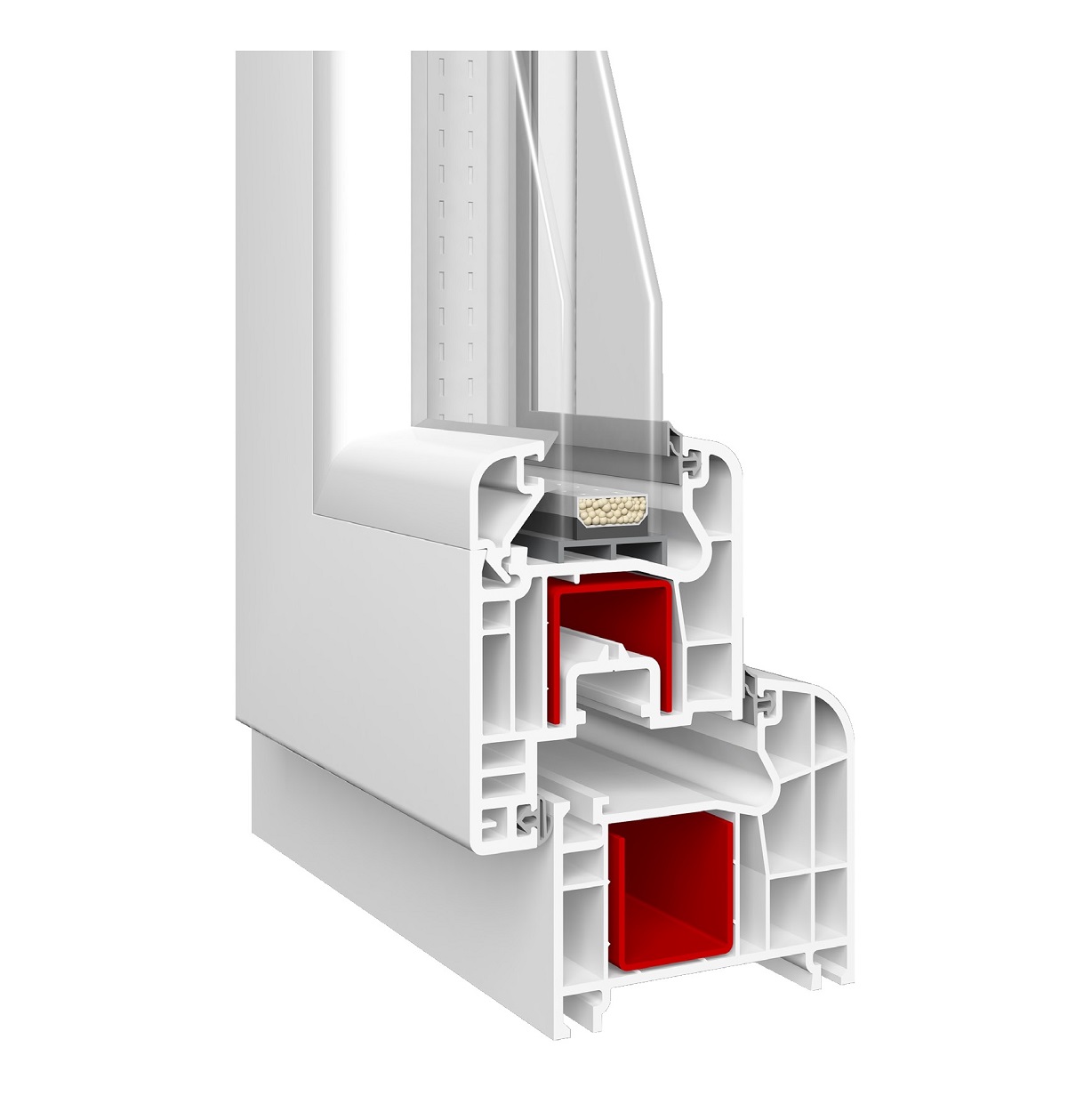

7060 A System Eco


• Profile membrane thicknesses are produced within 2,5 mm tolerances.
• Double glass up to thicknesses of 24 mm can be applied.
• By triple glass application it provides sound insulation up to 58 decibels.
• Special design TPV gaskets provide certain impermeability, it has a high durability to sunlight and external factors it does not get deformed by these conditions.
• The 10° slope and 8 mm radius at the profile surface facilitate the discharge of water. it does not allow any water leakage or accumulation after rain.
• Thanks to its specially designed 16° outward slope and water collection chamber the water discharges easily.
• Due to the height difference between the inner and outer walls it prevents the discharged water to get inside by the wind. Also, canals that do not contact with a supporting sheet provide air ventilation.
• Thanks to enhancing feathers the screws of hinges placed in prevent the window to sag by the time.
• Decorative and single bead profiles. Prevents dust to hold onto profiles. Also by force on glass surface they enable better grip on the glass.
• The cams under the profiles enable easy assembly and disassembly. Facilitate space for scaling during assembly and decreases heat transfer are also compatible to work with ancillary profiles.
• Reinforced, with specially designed single-type galvanized fortifier iron sheets, the profiles are resistant to external loads and enduring against wind pressure.
• Thanks to its 1st class quality raw materials used in formulation, it provides perfect protection against toughest climatic conditions, external ambiances, sunlight, and UV rays as well as corrosive environments.
• All mail profiles, since lock doors are inclusive provide perfect heat insulation. (UF=1,432W\m2 OK)
• Its surfaces are smooth and brilliant.

You Can Examine Our Alternative Products
